由于问题发生的比较突然，业务催的比较急，所以没来得及截图案发现场，所以现场截图为后期正常的环境。
周一上班，照例进入服务器，进入docker容器
>>> docker exec -i -t xxx /bin/bash
Docker error : no space left on device
没空间了？
立马想到查看系统的空间
Filesystem Size Used Avail Use% Mounted on
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 984K 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/vda1 50G 50G 0G 100% /
overlay 50G 5.9G 41G 13% /var/lib/docker/overlay2/4d0941b78fa413f3b77111735e06045b41351748bcea7964205bcfbf9d4ec0b6/merged
overlay 50G 5.9G 41G 13% /var/lib/docker/overlay2/54a7a7b66d9c12d7e42158d177a6b67321f7da1f223b301e838e9bc109a2bda4/merged
shm 64M 0 64M 0% /var/lib/docker/containers/712f65baea85d898f6c948e7149f84f2f5eaf3b1934540603f32ab278f9acec4/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/a5fa673086c8f46ba98fc4425b353ed2e12de3277a5fe2dc5b8b7affa63b4518/mounts/shm
overlay 50G 5.9G 41G 13% /var/lib/docker/overlay2/7fbbc8a29119a1eaa1f212c50b75405a1f16fd68e3ae3949cc0c963d0727a9ab/merged
shm 64M 0 64M 0% /var/lib/docker/containers/011a83deceacecbacb4ef7eb06eb5b812babf9e83914a4fb33d4925cc1ad375b/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0
原来是根目录满了
进一步查找
>>> cd /
>>> du -h --max-depth=1
984K ./run
16K ./opt
13M ./root
4.0K ./media
du: cannot access ‘./proc/4382/task/4382/fd/4': No such file or directory
du: cannot access ‘./proc/4382/task/4382/fdinfo/4': No such file or directory
du: cannot access ‘./proc/4382/fd/3': No such file or directory
du: cannot access ‘./proc/4382/fdinfo/3': No such file or directory
0 ./proc
204M ./boot
12K ./redis
39M ./etc
16K ./lost+found
4.0K ./srv
0 ./sys
47G ./var
2.8G ./usr
4.0K ./mnt
36K ./tmp
0 ./dev
4.0K ./home
50G .
>>> cd var
>>> du -h --max-depth=1
116M ./cache
8.0K ./empty
4.0K ./games
4.0K ./opt
24K ./db
46G ./lib
4.0K ./gopher
4.0K ./adm
4.0K ./crash
12K ./kerberos
4.0K ./preserve
4.0K ./nis
16K ./tmp
4.0K ./yp
4.0K ./local
104K ./spool
374M ./log
47G .
>>> cd lib
>>> du -h --max-depth=1
76K ./systemd
24K ./NetworkManager
4.0K ./tuned
4.0K ./games
248K ./cloud
215M ./rpm
8.0K ./plymouth
46G ./docker
248K ./containerd
4.0K ./dbus
4.0K ./initramfs
4.0K ./os-prober
8.0K ./rsyslog
24K ./alternatives
8.0K ./authconfig
12K ./stateless
4.0K ./misc
4.0K ./ntp
8.0K ./dhclient
4.0K ./selinux
8.0K ./chrony
4.0K ./rpm-state
12M ./yum
8.0K ./postfix
28K ./polkit-1
4.0K ./machines
8.0K ./logrotate
46G .
>>> cd docker
>>> du -h --max-depth=1
84K ./network
108K ./buildkit
4.0K ./trust
4.0K ./runtimes
5.7M ./image
42G ./volumes
24K ./plugins
4.0K ./tmp
20K ./builder
180K ./containers
3.3G ./overlay2
4.0K ./swarm
46G .
>>> cd volume
>>> du -h --max-depth=1
172K ./kudu_to_jdy_kudu_to_jdy
42G ./jdy_extensions_logs
748K ./bot_etl_bot_etl
42G .
原来是jdy_extensions_logs这个volume爆满导致的，后面就是找代码bug的过程了，略
后记：

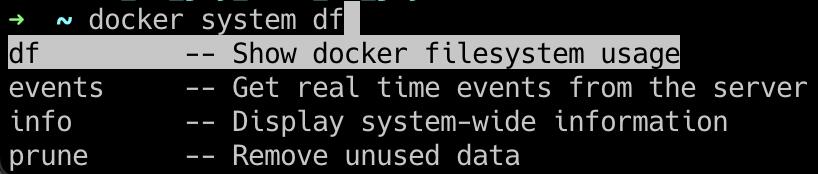

其实docker提供了很多命令来对容器镜像进行管理，其中的docker system df就是一个比较有用的命令
# 显示docker文件系统使用情况
>>> docker system df
TYPE TOTAL ACTIVE SIZE RECLAIMABLE
Images 7 3 2.146GB 693.2MB (32%)
Containers 3 3 127.5kB 0B (0%)
Local Volumes 3 3 1.511MB 0B (0%)
Build Cache 0 0 0B 0B
# 显示空间使用情况
>>> docker system df -v
Images space usage:
REPOSITORY TAG IMAGE ID CREATED SIZE SHARED SIZE UNIQUE SIZE CONTAINERS
jdy_extension 1.7 e3be3be9664a 15 hours ago 627.6MB 73.86MB 553.7MB 1
<none> <none> 4b5825747ae9 19 hours ago 74.02MB 73.86MB 158.8kB 0
redis 6.2.1 f877e80bb9ef 2 weeks ago 105.3MB 0B 105.3MB 0
kudu_to_jdy 2.9 888b72288bca 2 weeks ago 538.1MB 73.86MB 464.3MB 1
jdy_to_db 1.9 c345c4e15c1a 7 months ago 587.7MB 73.86MB 513.9MB 0
bot_etl 2.3 020d41691ec7 7 months ago 508.6MB 73.86MB 434.8MB 1
ubuntu 20.04 adafef2e596e 8 months ago 73.86MB 73.86MB 0B 0
Containers space usage:
CONTAINER ID IMAGE COMMAND LOCAL VOLUMES SIZE CREATED STATUS NAMES
011a83deceac jdy_extension:1.7 "supervisord -n -c /…" 1 17.8kB 15 hours ago Up 15 hours jdy_extension_1.7
712f65baea85 kudu_to_jdy:2.9 "supervisord -n -c /…" 1 36.9kB 2 weeks ago Up 45 hours kudu_to_jdy_2.9
a5fa673086c8 bot_etl:2.3 "supervisord -n -c /…" 1 72.8kB 7 months ago Up 45 hours bot_etl_2.3
Local Volumes space usage:
VOLUME NAME LINKS SIZE
jdy_extensions_logs 1 658.5kB
kudu_to_jdy_kudu_to_jdy 1 128kB
bot_etl_bot_etl 1 724kB
Build cache usage: 0B
CACHE ID CACHE TYPE SIZE CREATED LAST USED USAGE SHARED
# 删除所有没有在用的volume
>>> docker volume rm $(docker volume ls -q)
补充：记一次docker磁盘占用100%情况
在执行git pull origin master的时候，抛出如下错误：
error: RPC failed; HTTP 500 curl 22 The requested URL returned error: 500
fatal: the remote end hung up unexpectedly
百度之后好多说是nginx文件大小限制，但是查看配置文件，大小限制已经设置到了500M，应该不是该原因造成的：
server
{
listen 80;
server_name localhost;
client_max_body_size 500M;
location / {
proxy_redirect off;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass http://localhost:180;
}
}
然后使用df -h查看磁盘情况，发现data2磁盘已经100%（docker存储在这里）：
使用docker system prune -a释放了很多空间，问题解决。
注意：使用上述命令会删除一下内容
WARNING! This will remove:
- all stopped containers
- all networks not used by at least one container
- all images without at least one container associated to them
- all build cache
Are you sure you want to continue? [y/N] y
以上为个人经验，希望能给大家一个参考，也希望大家多多支持脚本之家。如有错误或未考虑完全的地方，望不吝赐教。
