1、DockerUI介绍
DockerUI基于Docker API,提供等同Docker命令行的大部分功能,支持container管理,image管理。
DockerUI展示

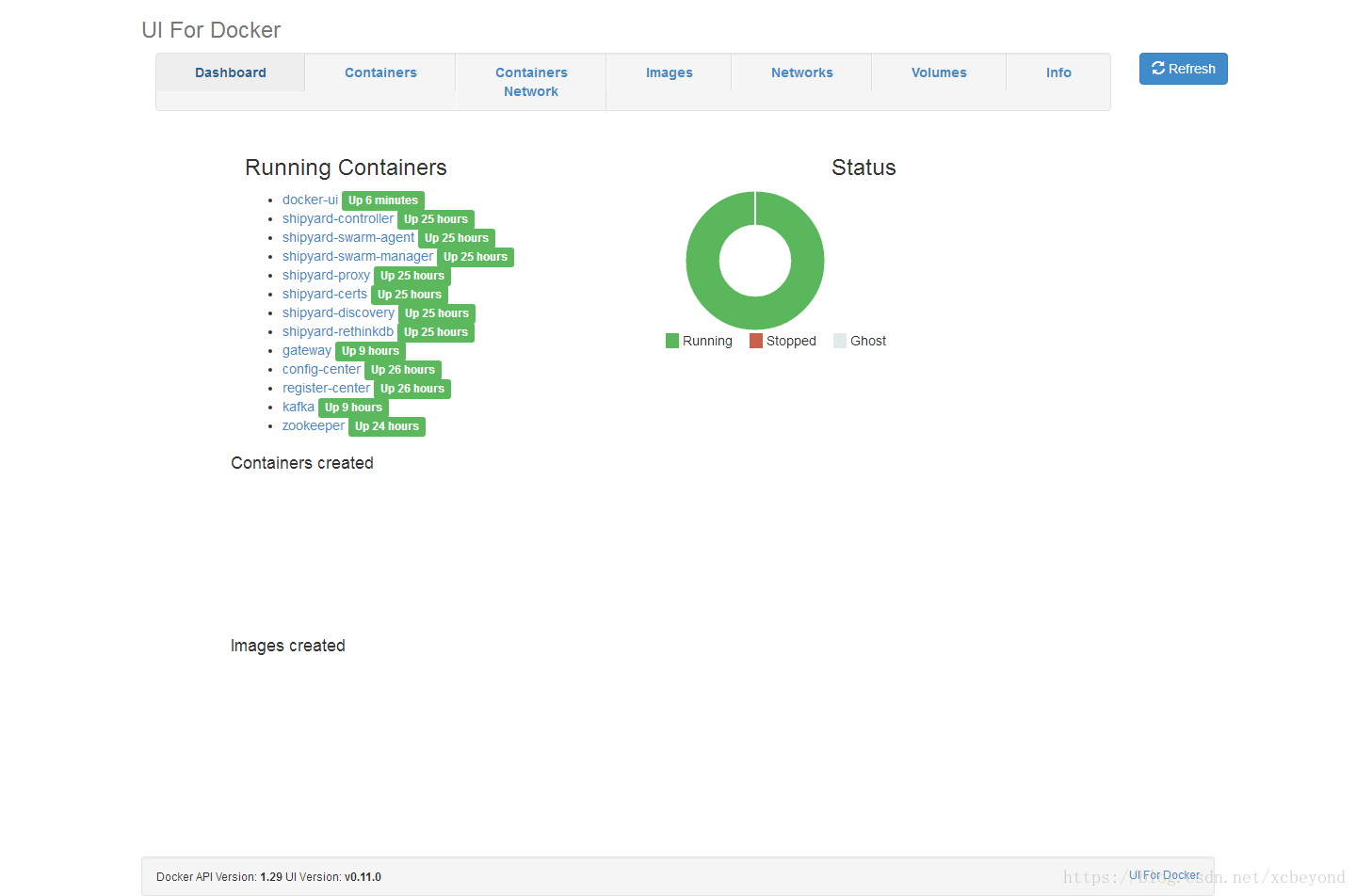

首页
展示出了目前容器的运行列表,容器、镜像创建时间及数量。

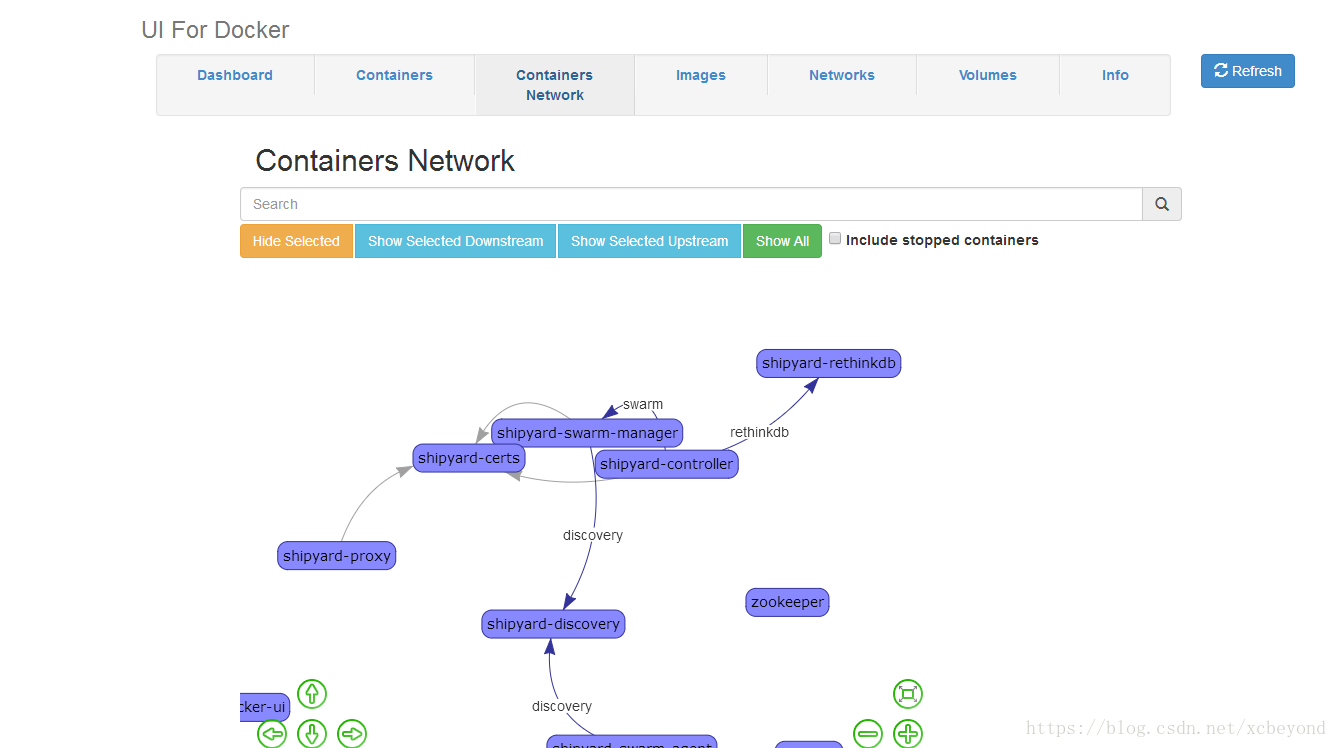

各容器间网络关联情况
看起来比较炫,但感觉没啥实用性。

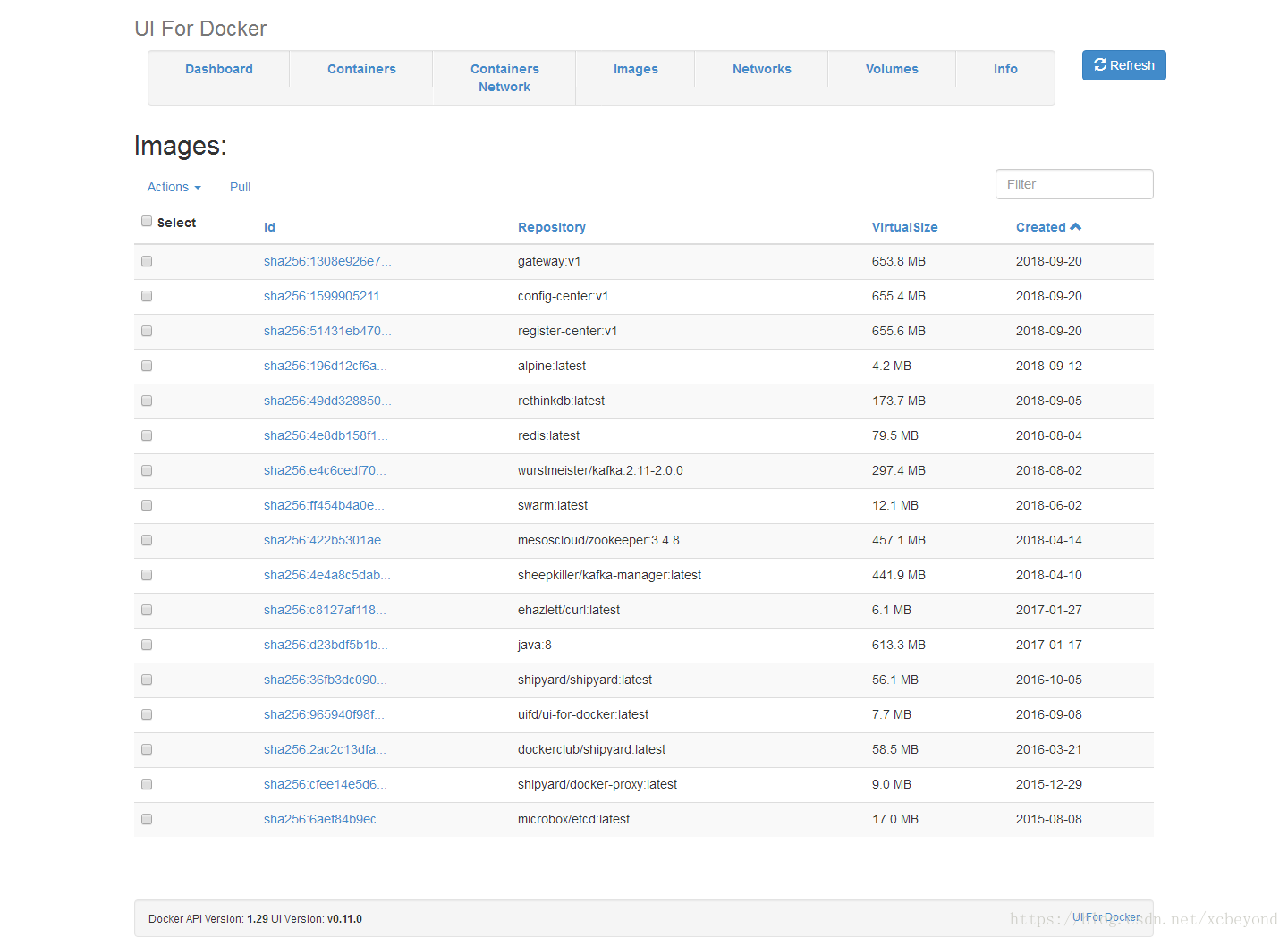

镜像
镜像列表,可删除、上传新的镜像。
2、DockerUI安装
采用docker方式安装。
(1)镜像下载
[docker@docker ~]$ docker search docker-ui
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
alpine A minimal Docker image based on Alpine Lin... 4286 [OK]
jenkins Official Jenkins Docker image 3827 [OK]
registry The Docker Registry 2.0 implementation for... 2209 [OK]
swarm Swarm: a Docker-native clustering system. 906 [OK]
docker Docker in Docker! 826 [OK]
fedora Official Docker builds of Fedora 709 [OK]
hello-world Hello World! (an example of minimal Docker... 655 [OK]
atcol/docker-registry-ui A web UI for easy private/local Docker Reg... 110 [OK]
swaggerapi/swagger-ui A simple docker container for hosting swag... 109
uifd/ui-for-docker A web interface for Docker, formerly known... 89 [OK]
docker-dev Docker is an open source project to pack, ... 80 [OK]
francescou/docker-compose-ui web interface for Docker Compose 63 [OK]
schickling/swagger-ui Swagger UI 2.2.8 with API_URL, API_KEY and... 49 [OK]
landoop/kafka-topics-ui UI for viewing Kafka Topics config and dat... 21 [OK]
jippi/hashi-ui A user interface for the HashiCorp Nomad s... 15
joxit/docker-registry-ui Docker registry v2 web User Interface 13 [OK]
landoop/schema-registry-ui UI for Confluent's Schema Registry 7 [OK]
purpleworks/fleet-ui Web based UI for fleet 6
screwdrivercd/ui Screwdriver UI 6 [OK]
dtagdevsec/ui-for-docker ui-for-docker 6 [OK]
mlabouardy/dockerswarm-ui DockerSwarm UI is 100% compatible with the... 5
quiq/docker-registry-ui Docker Registry UI 2
hsldevcom/digitransit-ui Digitransit-ui is a mobile friendly user i... 1
apicurio/apicurio-studio-ui The UI component of the Apicurio Studio ap... 0
igeolise/docker-uikit uikit 0 [OK]
[docker@docker ~]$ docker pull uifd/ui-for-docker
Using default tag: latest
latest: Pulling from uifd/ui-for-docker
841194d080c8: Pull complete
Digest: sha256:fe371ff5a69549269b24073a5ab1244dd4c0b834cbadf244870572150b1cb749
Status: Downloaded newer image for uifd/ui-for-docker:latest
(2)镜像运行
[docker@docker ~]$ docker run -it -d --name docker-ui -p 9000:9000 -v /var/run/docker.sock:/var/run/docker.sock docker.io/uifd/ui-for-docker
0f9a7b32e17dc0314b4aa9484321d123cc7212a90b3c0246eaf5b0d299211d70
访问:http://192.168.1.200:9000,进入dockerUI界面。
