ASP.NET笔记之 ListView 与 DropDownList的使用

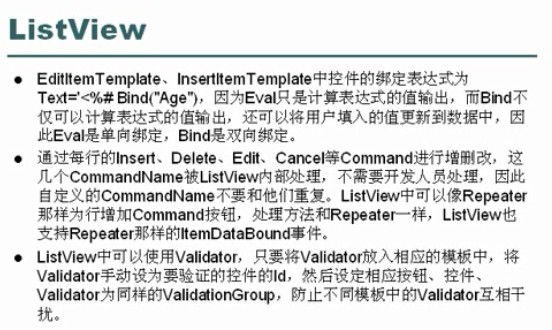

1、Repeater用来显示数据、ListView用来操作数据

InsertItemTemplate和updateItemTemplate
**Eval（显示数据）和Bind（双向绑定：不仅是需要展现，更需要把数据绑定到数据库中）

ItemPlaceholderID：占位符，决定占位，把头部（之上）和尾部（之下）分隔开
ItemTemplate：展示功能

自动生成的ListView需要调整的地方
（1、生成的样式要提到style中，不要用内联的方式
（2、ItemTemplate里面一半没必要用asp:Label>展示只读数据，所以可以直接输出
%#Eval("id")%>
(3、LayoutTemplate中必须有一个ItempPlaceholderID 的服务端控件
(4、LayoutTemplate中表头的位置要汉化，所有template中的不需显示的字段需删除或更改位置

2、事件
流程同Repeater：

//首先判断数据行的类型
e.Item.ItemType==ListViewItemType.DataItem

//把e.Item转化成ListViewDataItem才能拿到DataItem
ListViewDataItem lvDataItem=(ListViewDataItem)e.Item;
DataRowView rowView=(DataRowView)lvDataItem.DataItem;
//获得某一列
var xRow=(...DAL.DataSet1.T_UserRow)rowVIew.Row;
//获得某一列的值
xRow.Age、xRow.sName...etc.

3、具体注意
（1、设定相应的按钮、控件、Validator为童颜的ValidationGroup，
防止不同模板中的Validator互相干扰，
（2、将Cancel按钮中的CausesValidation="false"使得插入修改数据时
可以取消操作，这样即使在同一个分组内也可以不互相影响

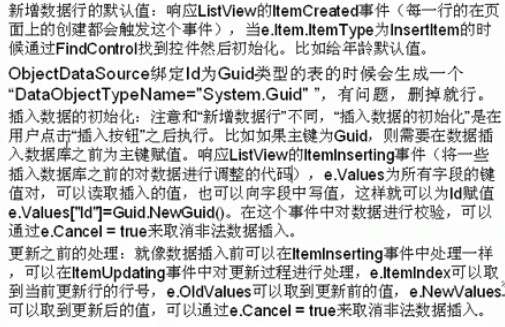

4、给InsertItemplate增加默认值
//在ItemCreate属性中进入函数
if(e.Item.ItemType==ListViewItemType.InsertItem){
TextBox AgeText=（TextBox)e.Item.FindControl("AgeID");
AgeText.Text="20";
}

5、主键Guid：插入到数据库

（1、ListView的ItemInserting属性：
//要插入到数据库之前的数据的键值对
e.values["id"]=Guid.NewGuid();

（2、ListView的ItemUpdateing属性：
e.ItemIdex
e.OldValues//更新前的值
e.NewValues["Age"]//更新后的值
e.Cancel=true;//取消非法数据插入

ObjectDataSource
绑定id为guid 类型的时候

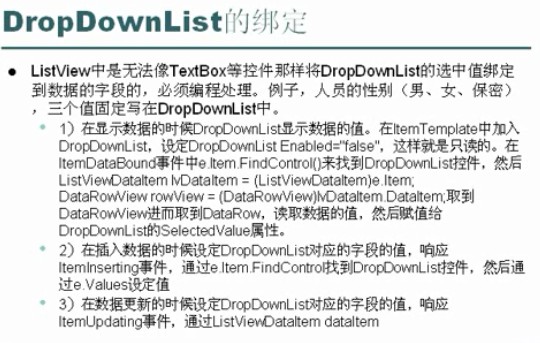

6、DropDrownList

（1、
//包含在DropDrownList中的项
asp:ListItem value="man">男/asp:ListItem>

（2、
**后台代码：更新的时候
//找到ListView
//ListView1.Item[e.ItemIndex].FindControl("ID");
//它是一个DropViewList
DropDrownList d=(DropDrownList)listView1.Item[e.ItemIndex].FindControl("ID");
//赋值
e.NewValues=["字段"]=d.SelectedValue;

（3、
**后台代码：实现编辑时显示原先的数据
//有数据行
if(e.Item.ItemType==ListVIewDataList.DataItem){
//取控件
DropDownList d=(DropDownLIst)e.Item.FindControl("ID");

if(d!=null){
//取到这一行绑定的数据
ListViewDataItem lv=(ListViewDataItem)e.Item;
DataRowItem row=(dataRowItem)lv.DataItem;
//如果这一行有数据
if(row!=null){
//读取数据库该Row的值
var myRow=(项目名称.DAL.DataSetUsers.T_Users)row.Row;

//将读取打偶的Row值设置为下拉菜单中的选项
d.SelectedValue=myRow.字段;
}
}
}

（4、可以看不可以用 Enabled="false

友情链接管理：

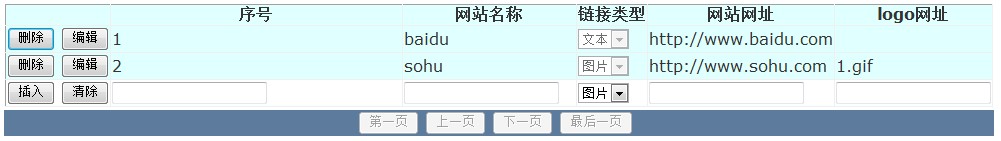

效果：

存在问题总结：

（1、警告 1 元素“ListView”不是已知元素。原因可能是网站中存在编译错误，或者缺少 web.config 文件。 E:\code\Projects\WebSite_zzl01\友情链接\LinkUrl_Admin.aspx 39 10 友情链接

（2、onLinkTypeChange(this,'" + logoID.ClientID + "') 中传给前台javascript的ID不是客户端的ID，会导致显示和隐藏的功能无法实现，所以增加一个myID

： logoID.Attributes["myid"] = logoID.ClientID; 来传递参数

LinkUrl_Admin.aspx.cs

复制代码代码如下:

using System;
 using System.Collections.Generic;
 using System.Linq;
 using System.Web;
 using System.Web.UI;
 using System.Web.UI.WebControls;
 using System.Data;

 namespace 友情链接
 {
     public partial class LinkUrl_Admin : System.Web.UI.Page
     {
         protected void Page_Load(object sender, EventArgs e)
         {

         }

         protected void ListView1_ItemDataBound(object sender, ListViewItemEventArgs e)
         {
             //ListView1的属性ItemDataBound数据绑定每一行
             //显示数据
             if (e.Item.ItemType == ListViewItemType.DataItem) {
                 DropDownList ddlsLinkType = (DropDownList)e.Item.FindControl("ddlsLinkType");
                 ListViewDataItem dataitem = (ListViewDataItem)e.Item;
                 DataRowView myrow = (DataRowView)dataitem.DataItem;

                 if (ddlsLinkType != null  myrow != null) {
                     var sUrl = (友情链接.ADL.DataSet1.T_LinksRow)myrow.Row;
                     ddlsLinkType.SelectedValue = sUrl.sLinkType;
                 }
             }

         }

         protected void ListView1_ItemInserting(object sender, ListViewInsertEventArgs e)
         {
             //插入数据
             DropDownList ddlsLinkType = (DropDownList)e.Item.FindControl("ddlsLinkType");
             e.Values["sLinkType"] = ddlsLinkType.SelectedValue;
         }

         protected void ListView1_ItemUpdating(object sender, ListViewUpdateEventArgs e)
         {
             //更新数据
             DropDownList ddlsLinkType = (DropDownList)ListView1.Items[e.ItemIndex].FindControl("ddlsLinkType");
             e.NewValues["sLinkType"] = ddlsLinkType.SelectedValue;
         }

         protected void ListView1_ItemCreated(object sender, ListViewItemEventArgs e)
         {
             if (e.Item.ItemType == ListViewItemType.DataItem || e.Item.ItemType ==
                 ListViewItemType.InsertItem) {
                DropDownList ddlsLinkType = (DropDownList)e.Item.FindControl("ddlsLinkType");
                TextBox logoID = (TextBox)e.Item.FindControl("LogoUrlTextBox");
                 if (ddlsLinkType != nulllogoID!=null) {
                     //onchange是html中select的属性
                     //onLinkTypeChange是后台代码调用前台javascript中自定义的jQuery函数

                     logoID.Attributes["myid"] = logoID.ClientID;

                     ddlsLinkType.Attributes["onchange"] = "onLinkTypeChange(this,'" + logoID.ClientID + "')";
                     if(ddlsLinkType.SelectedValue=="Text"){
                         logoID.Style["display"] = "none";
                     }
                 }
             }
         }
     }
 }

LinkUrl_Admin.aspx

复制代码代码如下:

%@ Page Language="C#" AutoEventWireup="true" CodeBehind="LinkUrl_Admin.aspx.cs" Inherits="友情链接.LinkUrl_Admin" %>

 !DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

 html xmlns="http://www.w3.org/1999/xhtml">
 head runat="server">
     title>友情链接管理页面/title>
     script src="Scripts/jquery-1.4.2.js" type="text/javascript">/script>
     script type="text/javascript">
         function onLinkTypeChange(urlType, logoID) {
             if ($(urlType).val() == "Text") {
                 $("input:text[myid=" + logoID + "]").hide();
                 //$("#" + logoID).hide(); //传到到客户端不是客户端的id
                 //$("#ListView1_LogoURLTextBox").hide();//真正的id
             }
             else {
                 $("input:text[myid=" + logoID + "]").show();
                 //$("#" + logoID).show();
             }
         }
     /script>
 /head>
 body>
     form id="form1" runat="server">
     div>

         asp:ObjectDataSource ID="ObjectDataSource1" runat="server"
             DeleteMethod="Delete" InsertMethod="Insert"
             OldValuesParameterFormatString="original_{0}" SelectMethod="GetData"
             TypeName="友情链接.ADL.DataSet1TableAdapters.T_LinksTableAdapter"
             UpdateMethod="Update">
             DeleteParameters>
                 asp:Parameter Name="Original_ID" Type="Int64" />
             /DeleteParameters>
             InsertParameters>
                 asp:Parameter Name="SeoNo" Type="Int32" />
                 asp:Parameter Name="SiteName" Type="String" />
                 asp:Parameter Name="sLinkType" Type="String" />
                 asp:Parameter Name="SiteUrl" Type="String" />
                 asp:Parameter Name="LogoUrl" Type="String" />
             /InsertParameters>
             UpdateParameters>
                 asp:Parameter Name="SeoNo" Type="Int32" />
                 asp:Parameter Name="SiteName" Type="String" />
                 asp:Parameter Name="sLinkType" Type="String" />
                 asp:Parameter Name="SiteUrl" Type="String" />
                 asp:Parameter Name="LogoUrl" Type="String" />
                 asp:Parameter Name="Original_ID" Type="Int64" />
             /UpdateParameters>
         /asp:ObjectDataSource>

     /div>
     asp:ListView ID="ListView1" runat="server" DataKeyNames="ID"
         DataSourceID="ObjectDataSource1" InsertItemPosition="LastItem"
         onitemdatabound="ListView1_ItemDataBound"
         oniteminserting="ListView1_ItemInserting"
         onitemupdating="ListView1_ItemUpdating"
         onitemcreated="ListView1_ItemCreated">

         EditItemTemplate>
             tr style="background-color: #999999;">
                 td>
                     asp:Button ID="UpdateButton" runat="server" CommandName="Update" Text="更新" />
                     asp:Button ID="CancelButton" runat="server" CommandName="Cancel" Text="取消" />
                 /td>
                 td>
                     asp:TextBox ID="SeoNoTextBox" runat="server" Text='%# Bind("SeoNo") %>' />
                 /td>
                 td>
                     asp:TextBox ID="SiteNameTextBox" runat="server"
                         Text='%# Bind("SiteName") %>' />
                 /td>
                 td>
                    asp:DropDownList ID="ddlsLinkType" runat="server">
                      asp:ListItem Value="Text">文本/asp:ListItem>
                      asp:ListItem Value="Pic">图片/asp:ListItem>
                    /asp:DropDownList>
                 /td>
                 td>
                     asp:TextBox ID="SiteUrlTextBox" runat="server" Text='%# Bind("SiteUrl") %>' />
                 /td>
                 td>
                     asp:TextBox ID="LogoUrlTextBox" runat="server" Text='%# Bind("LogoUrl") %>' />
                 /td>
             /tr>
         /EditItemTemplate>
         EmptyDataTemplate>
             table runat="server"
                 style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;">
                 tr>
                     td>
                         未返回数据。/td>
                 /tr>
             /table>
         /EmptyDataTemplate>
         InsertItemTemplate>
             tr style="">
                 td>
                     asp:Button ID="InsertButton" runat="server" CommandName="Insert" Text="插入" ValidationGroup="Insert" />
                     asp:Button ID="CancelButton" runat="server" CommandName="Cancel" Text="清除" />
                 /td>
                 td>
                     asp:TextBox ID="SeoNoTextBox" ValidationGroup="Insert" runat="server" Text='%# Bind("SeoNo") %>' />
                     asp:RequiredFieldValidator ValidationGroup="Insert" ID="RequiredFieldValidator1" runat="server" ErrorMessage="*" ControlToValidate="SeoNoTextBox">
                     /asp:RequiredFieldValidator>
                     asp:CompareValidator ValidationGroup="Insert" ID="CompareValidator1" runat="server" ErrorMessage="序号必须为整数" ControlToValidate="SeoNoTextBox" Operator="DataTypeCheck" Type="Integer">
                     /asp:CompareValidator>
                 /td>
                 td>
                     asp:TextBox ID="SiteNameTextBox" ValidationGroup="Insert" runat="server" MaxLength="50"
                         Text='%# Bind("SiteName") %>' />
                     asp:RequiredFieldValidator ValidationGroup="Insert" ID="RequiredFieldValidator2" runat="server" ErrorMessage="*" ControlToValidate="SiteNameTextBox">
                     /asp:RequiredFieldValidator>
                 /td>
                 td>
                    asp:DropDownList ID="ddlsLinkType" ValidationGroup="Insert" runat="server" >
                      asp:ListItem Value="Text">文本/asp:ListItem>
                      asp:ListItem Value="Pic">图片/asp:ListItem>
                    /asp:DropDownList>
                 /td>
                 td>
                     asp:TextBox ID="SiteUrlTextBox" ValidationGroup="Insert" runat="server" Text='%# Bind("SiteUrl") %>' />
                     asp:RequiredFieldValidator ValidationGroup="Insert" ID="RequiredFieldValidator3" runat="server" ErrorMessage="*" ControlToValidate="SiteUrlTextBox">
                     /asp:RequiredFieldValidator>
                 /td>
                 td>
                     asp:TextBox ID="LogoUrlTextBox" ValidationGroup="Insert" runat="server" Text='%# Bind("LogoUrl") %>' />
                 /td>
             /tr>
         /InsertItemTemplate>
         ItemTemplate>
             tr style="background-color: #E0FFFF;color: #333333;">
                 td>
                     asp:Button ID="DeleteButton" runat="server" CommandName="Delete" Text="删除" />
                     asp:Button ID="EditButton" runat="server" CommandName="Edit" Text="编辑" />
                 /td>
                 td>
                     asp:Label ID="SeoNoLabel" runat="server" Text='%# Eval("SeoNo") %>' />
                 /td>
                 td>
                     asp:Label ID="SiteNameLabel" runat="server" Text='%# Eval("SiteName") %>' />
                 /td>
                 td>
                    asp:DropDownList ID="ddlsLinkType" runat="server" Enabled="false">
                      asp:ListItem Value="Text">文本/asp:ListItem>
                      asp:ListItem Value="Pic">图片/asp:ListItem>
                    /asp:DropDownList>
                 /td>
                 td>
                     asp:Label ID="SiteUrlLabel" runat="server" Text='%# Eval("SiteUrl") %>' />
                 /td>
                 td>
                     asp:Label ID="LogoUrlLabel" runat="server" Text='%# Eval("LogoUrl") %>' />
                 /td>
             /tr>
         /ItemTemplate>
         LayoutTemplate>
             table runat="server">
                 tr runat="server">
                     td runat="server">
                         table ID="itemPlaceholderContainer" runat="server" border="1"
                             style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;font-family: Verdana, Arial, Helvetica, sans-serif;">
                             tr runat="server" style="background-color: #E0FFFF;color: #333333;">
                                 th runat="server">
                                 /th>
                                 th runat="server">
                                     序号/th>
                                 th runat="server">
                                     网站名称/th>
                                 th runat="server">
                                     链接类型/th>
                                 th runat="server">
                                     网站网址/th>
                                 th runat="server">
                                     logo网址/th>
                             /tr>
                             tr ID="itemPlaceholder" runat="server">
                             /tr>
                         /table>
                     /td>
                 /tr>
                 tr runat="server">
                     td runat="server"
                         style="text-align: center;background-color: #5D7B9D;font-family: Verdana, Arial, Helvetica, sans-serif;color: #FFFFFF">
                         asp:DataPager ID="DataPager1" runat="server">
                             Fields>
                                 asp:NextPreviousPagerField ButtonType="Button" ShowFirstPageButton="True"
                                     ShowLastPageButton="True" />
                             /Fields>
                         /asp:DataPager>
                     /td>
                 /tr>
             /table>
         /LayoutTemplate>
     /asp:ListView>
     /form>
 /body>
 /html>
