Python运行第一个PySide2的窗体程序

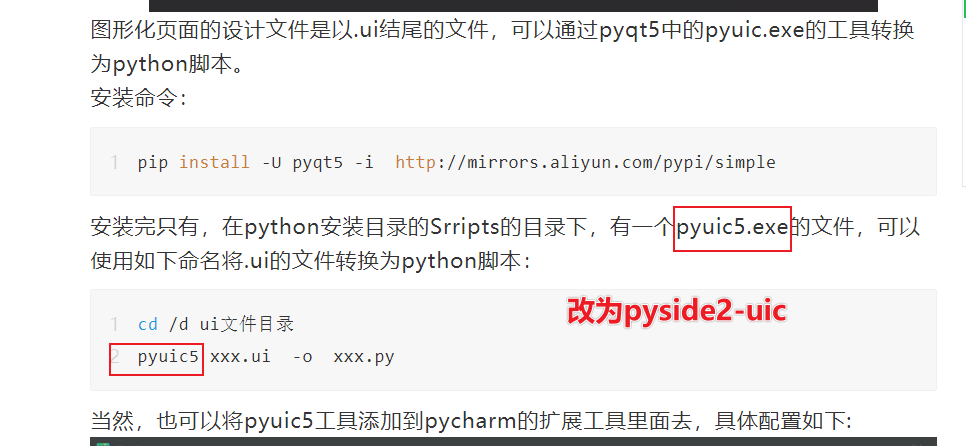

上一章节介绍了PySide2的安装以及如何去启动程序进行页面设计，并且将工具集成到pycharm的扩展工具中去，有2个地方写的不对，用的是pyuic工具，需要改一下，改成pyside2-uic.exe。具体改动点：

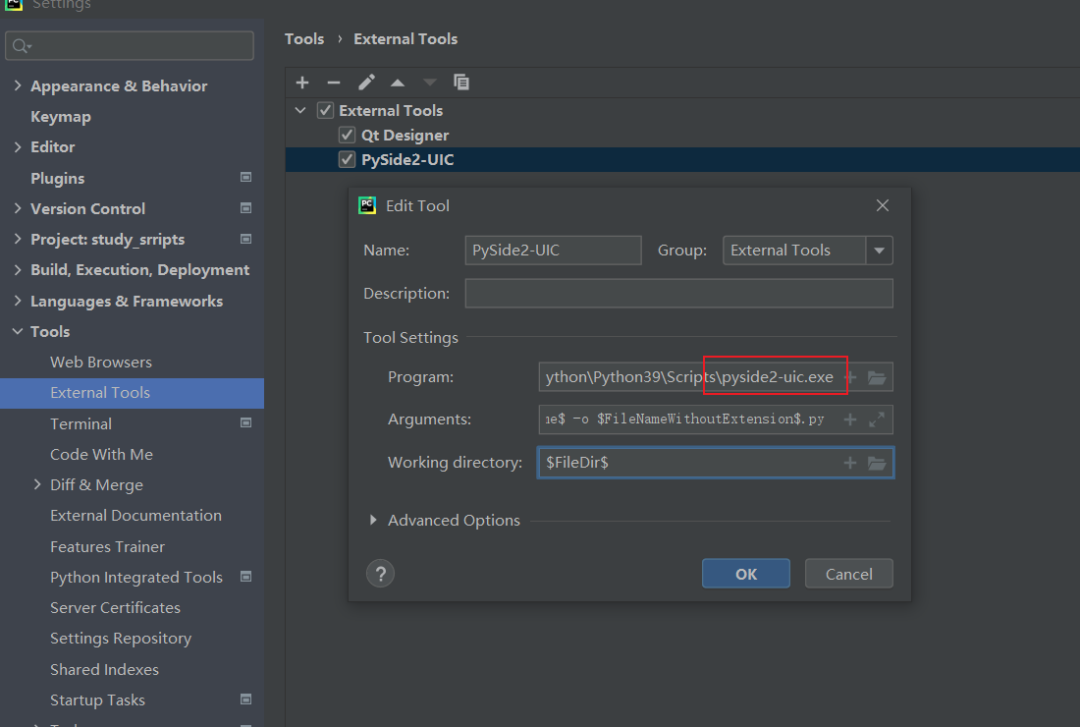

pycharm扩展工具中的配置也需要调整一下：

上一篇的配置写的是pyqt5的配置，这里主要采用PySide2进行学习。

修改为正确的配置后，鼠标选中ui文件，右键选择扩展工具中的pyside2-uic就可以转换为python脚本。

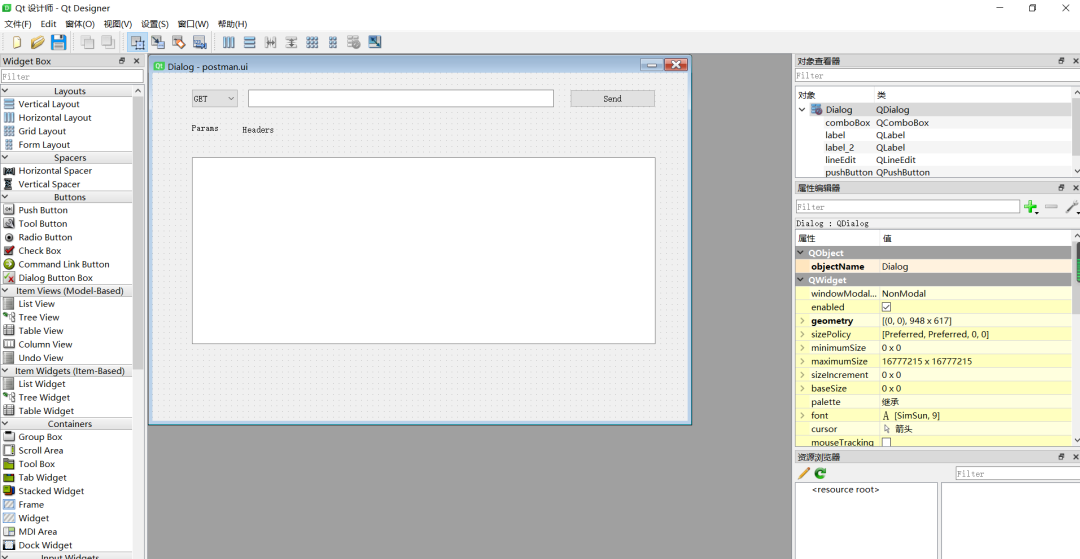

先看一下我画的一个简单的GUI页面：

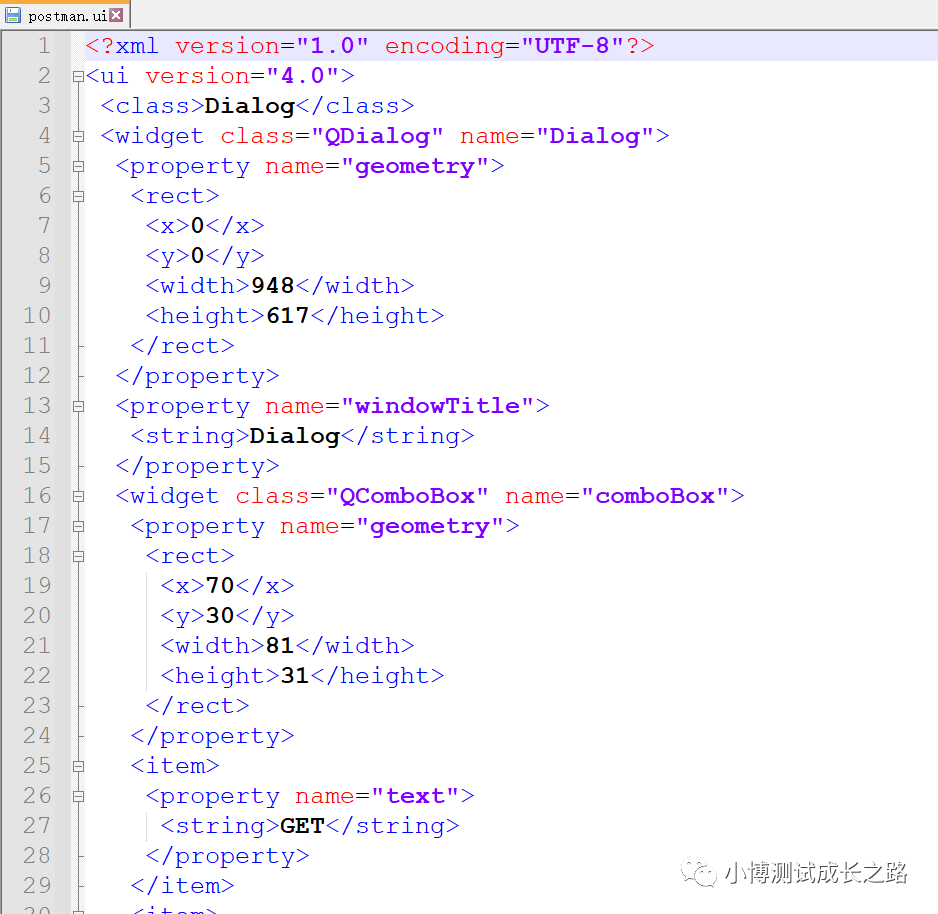

保存页面文件后，后缀是.ui的格式，用文本文件打开的话，内容是xml格式的：

postman.ui源码：

?xml version="1.0" encoding="UTF-8"?>
ui version="4.0">
 class>Dialog/class>
 widget class="QDialog" name="Dialog">
  property name="geometry">
   rect>
    x>0/x>
    y>0/y>
    width>948/width>
    height>617/height>
   /rect>
  /property>
  property name="windowTitle">
   string>Dialog/string>
  /property>
  widget class="QComboBox" name="comboBox">
   property name="geometry">
    rect>
     x>70/x>
     y>30/y>
     width>81/width>
     height>31/height>
    /rect>
   /property>
   item>
    property name="text">
     string>GET/string>
    /property>
   /item>
   item>
    property name="text">
     string>POST/string>
    /property>
   /item>
  /widget>
  widget class="QLineEdit" name="lineEdit">
   property name="geometry">
    rect>
     x>170/x>
     y>30/y>
     width>541/width>
     height>31/height>
    /rect>
   /property>
  /widget>
  widget class="QPushButton" name="pushButton">
   property name="geometry">
    rect>
     x>740/x>
     y>30/y>
     width>151/width>
     height>31/height>
    /rect>
   /property>
   property name="text">
    string>Send/string>
   /property>
  /widget>
  widget class="QLabel" name="label">
   property name="geometry">
    rect>
     x>70/x>
     y>90/y>
     width>72/width>
     height>15/height>
    /rect>
   /property>
   property name="text">
    string>Params/string>
   /property>
  /widget>
  widget class="QLabel" name="label_2">
   property name="geometry">
    rect>
     x>160/x>
     y>90/y>
     width>121/width>
     height>21/height>
    /rect>
   /property>
   property name="text">
    string>Headers/string>
   /property>
  /widget>
  widget class="QTextEdit" name="textEdit">
   property name="geometry">
    rect>
     x>70/x>
     y>150/y>
     width>821/width>
     height>331/height>
    /rect>
   /property>
  /widget>
 /widget>
 resources/>
 connections/>
/ui>

转换之后的python脚本：postman.py

# -*- coding: utf-8 -*-


################################################################################
## Form generated from reading UI file 'postman.ui'
##
## Created by: Qt User Interface Compiler version 5.15.2
##
## WARNING! All changes made in this file will be lost when recompiling UI file!
################################################################################


from PySide2.QtCore import *
from PySide2.QtGui import *
from PySide2.QtWidgets import *




class Ui_Dialog(object):
    def setupUi(self, Dialog):
        if not Dialog.objectName():
            Dialog.setObjectName(u"Dialog")
        Dialog.resize(948, 617)
        self.comboBox = QComboBox(Dialog)
        self.comboBox.addItem("")
        self.comboBox.addItem("")
        self.comboBox.setObjectName(u"comboBox")
        self.comboBox.setGeometry(QRect(70, 30, 81, 31))
        self.lineEdit = QLineEdit(Dialog)
        self.lineEdit.setObjectName(u"lineEdit")
        self.lineEdit.setGeometry(QRect(170, 30, 541, 31))
        self.pushButton = QPushButton(Dialog)
        self.pushButton.setObjectName(u"pushButton")
        self.pushButton.setGeometry(QRect(740, 30, 151, 31))
        self.label = QLabel(Dialog)
        self.label.setObjectName(u"label")
        self.label.setGeometry(QRect(70, 90, 72, 15))
        self.label_2 = QLabel(Dialog)
        self.label_2.setObjectName(u"label_2")
        self.label_2.setGeometry(QRect(160, 90, 121, 21))
        self.textEdit = QTextEdit(Dialog)
        self.textEdit.setObjectName(u"textEdit")
        self.textEdit.setGeometry(QRect(70, 150, 821, 331))


        self.retranslateUi(Dialog)


        QMetaObject.connectSlotsByName(Dialog)
    # setupUi


    def retranslateUi(self, Dialog):
        Dialog.setWindowTitle(QCoreApplication.translate("Dialog", u"Dialog", None))
        self.comboBox.setItemText(0, QCoreApplication.translate("Dialog", u"GET", None))
        self.comboBox.setItemText(1, QCoreApplication.translate("Dialog", u"POST", None))


        self.pushButton.setText(QCoreApplication.translate("Dialog", u"Send", None))
        self.label.setText(QCoreApplication.translate("Dialog", u"Params", None))
        self.label_2.setText(QCoreApplication.translate("Dialog", u"Headers", None))
    # retranslateUi

单单有以上两个脚本是无法运行的，还需要单独再写几行代码来加载页面窗口进行展示：

run_postman.py:

import sys
from PySide2.QtWidgets import QApplication, QMainWindow
from postman import Ui_Dialog


if __name__ == "__main__":
    # 创建一个Application对象
    app = QApplication(sys.argv)
    # 创建一个窗体对象
    MainWindow = QMainWindow()

    ui = Ui_Dialog()
    ui.setupUi(MainWindow)
    # 设置窗口显示
    MainWindow.show()
    sys.exit(app.exec_())

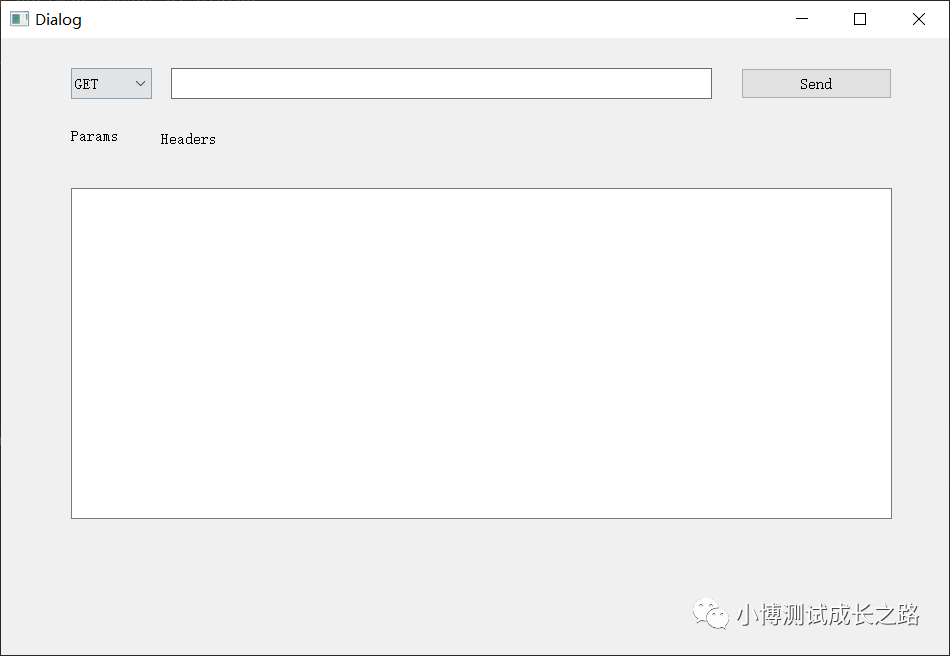

运行后的效果如下图所示：
