Python selenium模拟网页点击爬虫交管12123违章数据
热门标签：开封语音外呼系统代理商 开封自动外呼系统怎么收费 应电话机器人打电话违法吗 天津电话机器人公司 地图标注线上如何操作 手机网页嵌入地图标注位置 河北防封卡电销卡 电销机器人的风险 400电话办理哪种

在上一篇文章《Python教程—模拟网页点击爬虫定位系统》讲解怎么通过模拟点击方式爬取车辆定位数据，本次介绍怎么以模拟点击方式进入交管12123爬取车辆违章数据，本文直接讲解过程，使用的命令解释见上一篇文章。本文同《Python教程—模拟网页点击爬虫定位系统》同样为企业中实际的爬虫案例，如果之后想进入车企行业可以做个了解。

准备工具：spyder、selenium库、google浏览器及对应版本的chromedriver.exe

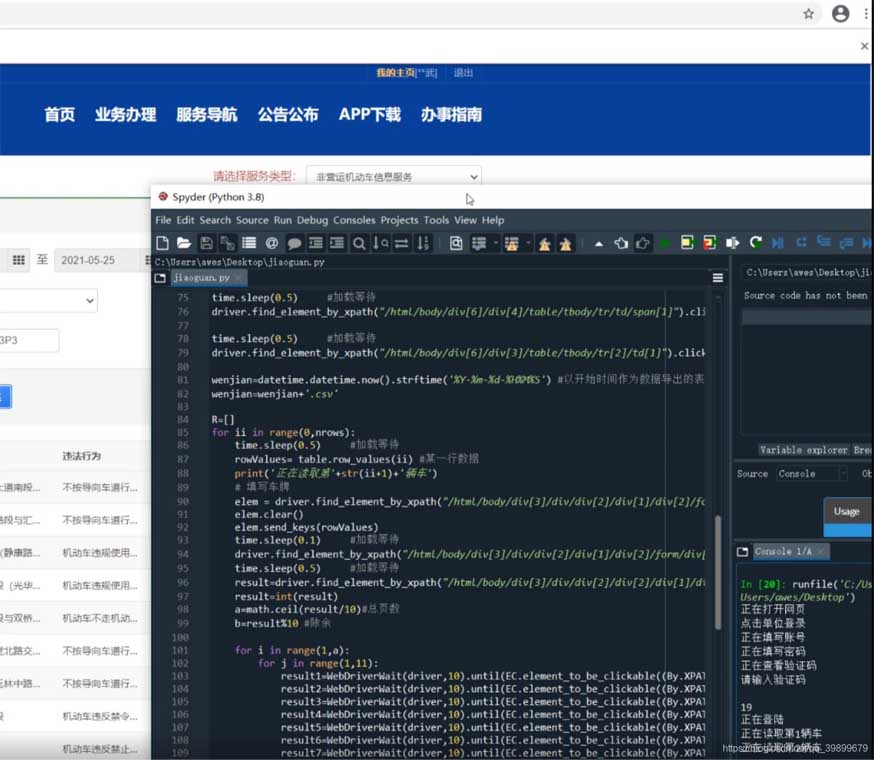

效果

注：分享此案例目的是为了帮助同行解放双手，更好管理企业资产，本文程序以删除网址、账号密码，该网址比较麻烦的一点是开始点击登录的时候网页可能会有其他弹窗出现，使得原有路径改变，程序会因为找不到对应路径而报错，重新执行程序即可。除了模拟点击登录，还可以直接通过Cookie直接登录网页，这种方式就可以绕过登录的繁琐步骤。

调用库

from selenium import webdriver
import time
import csv
import datetime
from selenium.webdriver.common.by import By
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.support.wait import WebDriverWait
import math
import xlrd

读取需要查询的车牌号

data = xlrd.open_workbook('cheliang.xlsx')

创建浏览，打开网页

opt = webdriver.ChromeOptions()   #创建浏览
#opt.set_headless()    #无窗口模式
driver = webdriver.Chrome(options=opt)  #创建浏览器对象
driver.maximize_window()   #最大化窗口
​
print("正在打开网页")
driver.get('') #打开网页

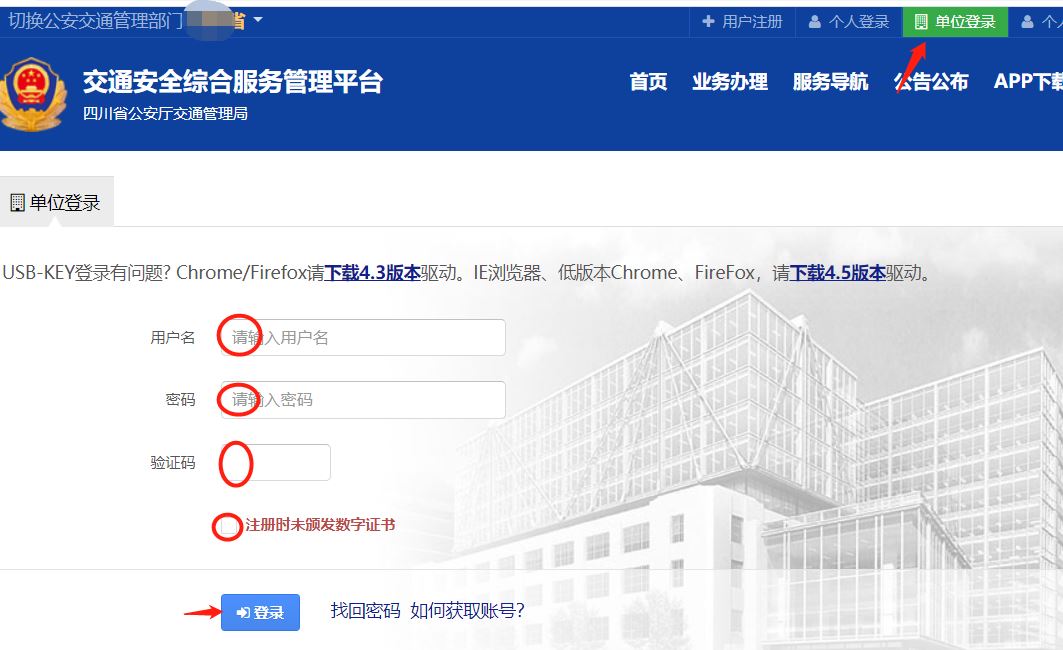

依次点击单位登录、输入账号、密码、点击验证码填写区域触发图片、勾选、输入验证码、点击登录

time.sleep(3)     #加载等待
print("点击单位登录")
time.sleep(3)     #加载等待
driver.find_element_by_xpath("/html/body/div[1]/div[2]/div/div[2]/div[2]/button").click()#点击单位登录
​
time.sleep(3)     #加载等待
print("正在填写账号")
elem = driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[1]/div/input")
# 清空原有内容
elem.clear()
# 填入账号
elem.send_keys("")
​
time.sleep(1)     #加载等待
print("正在填写密码")
elem = driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[2]/div/input")
# 清空原有内容
elem.clear()
# 填入密码
elem.send_keys("")
​
time.sleep(1)     #加载等待
print("正在查看验证码")
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[3]/div/input").click()#查看验证码
print("请输入验证码")
yanzhengma=input()
​
time.sleep(1)     #加载等待
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[4]/div/label/input").click()#勾选
​
time.sleep(1)     #加载等待
# 填入验证码
elem = driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[3]/div/input")
elem.clear()
elem.send_keys(str(yanzhengma))
​
time.sleep(1)     #加载等待
print("正在登陆")
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[5]/button").click()#点击

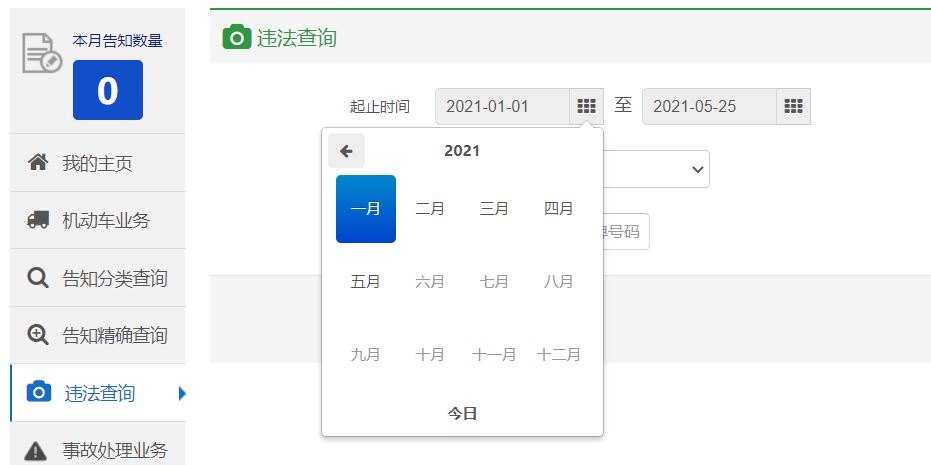

点击违法查询，设置查询时间

driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[5]/button").click()#点击

time.sleep(3)     #加载等待
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/ul/li[5]/a").click()#点击违法查询

time.sleep(1)     #加载等待
driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[1]/div[2]/form/div[1]/div/div[1]/span/i").click()#点击选择日期

for i in range(3):
    time.sleep(0.5)     #加载等待
    driver.find_element_by_xpath("/html/body/div[6]/div[4]/table/thead/tr/th[1]/i").click()#点击

time.sleep(0.5)     #加载等待
driver.find_element_by_xpath("/html/body/div[6]/div[4]/table/tbody/tr/td/span[1]").click()#点击

time.sleep(0.5)     #加载等待
driver.find_element_by_xpath("/html/body/div[6]/div[3]/table/tbody/tr[2]/td[1]").click()#点击

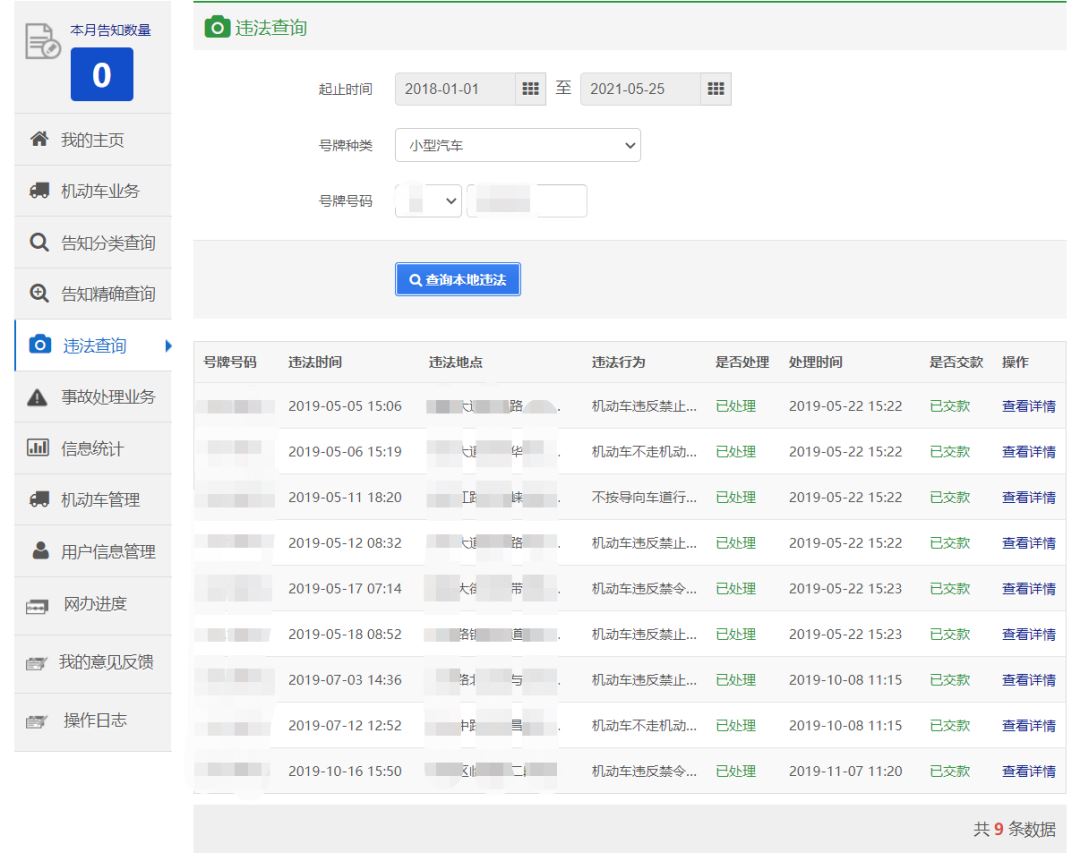

循环依次查询每个车牌违章信息，每次都需要清空上次输入，填写本次查询车牌，识别有多少条数据，共多少页，每页最多展示10条，最后一页有多少条数据

for ii in range(0,nrows):
    rowValues= table.row_values(ii) #某一行数据
    print('正在读取第'+str(ii+1)+'辆车')
# 填写车牌
    time.sleep(0.5)     #加载等待
    elem = driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[1]/div[2]/form/div[3]/div/input")
    elem.clear()
    elem.send_keys(rowValues)#输入车牌
    time.sleep(0.1)     #加载等待
    driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[1]/div[2]/form/div[4]/button").click()#点击查询
    time.sleep(0.5)     #加载等待
    result=driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[2]/div[1]/div/p/span").text#总违章条数
    result=int(result)
    a=math.ceil(result/10)#总页数
    b=result%10 #除余

读取列表中的数据，其中扣分和罚款需要点击"查看详情"，从弹窗中读取数据

result1=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[1]"))).text
result2=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[2]"))).text
result3=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[3]"))).text
result4=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[4]"))).text
result5=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[5]"))).text
result6=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[6]"))).text
result7=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[7]"))).text
WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[8]/a"))).click()#查看详情，打开弹窗
time.sleep(1)     #加载等待
result8=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[7]/span[2]"))).text
result9=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[8]/span[2]"))).text
result=[result1,result2,result3,result4,result5,result6,result7,result8,result9]
R.append(result)
WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//div[@class='modal-footer ui_modal']/button"))).click()#关闭弹窗
time.sleep(0.5)     #加载等待

每读取一辆车的数据就写入表格中

with open(wenjian,'w',encoding='utf-8',newline='') as fp:
    writer = csv.writer(fp)
    writer.writerows(R) #写入数据

完整代码

from selenium import webdriver
import time
import csv
import datetime
from selenium.webdriver.common.by import By
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.support.wait import WebDriverWait
import math
import xlrd
data = xlrd.open_workbook('cheliang.xlsx')
table = data.sheets()[0]
nrows = table.nrows #行数
ncols = table.ncols #列数

opt = webdriver.ChromeOptions()   #创建浏览
#opt.set_headless()    #无窗口模式
driver = webdriver.Chrome(options=opt)  #创建浏览器对象
driver.maximize_window()   #最大化窗口

print("正在打开网页")
driver.get('') #打开网页

time.sleep(3)     #加载等待
print("点击单位登录")
time.sleep(3)     #加载等待
driver.find_element_by_xpath("/html/body/div[1]/div[2]/div/div[2]/div[2]/button").click()#点击单位登录

time.sleep(3)     #加载等待
print("正在填写账号")
elem = driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[1]/div/input")
# 清空原有内容
elem.clear()
# 填入账号
elem.send_keys("")

time.sleep(1)     #加载等待
print("正在填写密码")
elem = driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[2]/div/input")
# 清空原有内容
elem.clear()
# 填入密码
elem.send_keys("")

time.sleep(1)     #加载等待
print("正在查看验证码")
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[3]/div/input").click()#查看验证码
print("请输入验证码")
yanzhengma=input()

time.sleep(1)     #加载等待
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[4]/div/label/input").click()#勾选

time.sleep(1)     #加载等待
# 填入验证码
elem = driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[3]/div/input")
elem.clear()
elem.send_keys(str(yanzhengma))


time.sleep(1)     #加载等待
print("正在登陆")
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/div/div[2]/form[1]/div[5]/button").click()#点击

time.sleep(3)     #加载等待
driver.find_element_by_xpath("/html/body/div[4]/div/div[1]/ul/li[5]/a").click()#点击违法查询

time.sleep(1)     #加载等待
driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[1]/div[2]/form/div[1]/div/div[1]/span/i").click()#点击选择日期

for i in range(3):
    time.sleep(0.5)     #加载等待
    driver.find_element_by_xpath("/html/body/div[6]/div[4]/table/thead/tr/th[1]/i").click()#点击

time.sleep(0.5)     #加载等待
driver.find_element_by_xpath("/html/body/div[6]/div[4]/table/tbody/tr/td/span[1]").click()#点击

time.sleep(0.5)     #加载等待
driver.find_element_by_xpath("/html/body/div[6]/div[3]/table/tbody/tr[2]/td[1]").click()#点击

wenjian=datetime.datetime.now().strftime('%Y-%m-%d-%H%M%S') #以开始时间作为数据导出的表格文件名
wenjian=wenjian+'.csv'

R=[]
for ii in range(0,nrows):
    rowValues= table.row_values(ii) #某一行数据
    print('正在读取第'+str(ii+1)+'辆车')
    # 填写车牌
    time.sleep(0.5)     #加载等待
    elem = driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[1]/div[2]/form/div[3]/div/input")
    elem.clear()
    elem.send_keys(rowValues)#输入车牌
    time.sleep(0.1)     #加载等待
    driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[1]/div[2]/form/div[4]/button").click()#点击查询
    time.sleep(0.5)     #加载等待
    result=driver.find_element_by_xpath("/html/body/div[3]/div/div[2]/div[2]/div[1]/div/p/span").text#总违章条数
    result=int(result)
    a=math.ceil(result/10)#总页数
    b=result%10 #除余

    for i in range(1,a):
        for j in range(1,11):

            result1=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[1]"))).text
            result2=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[2]"))).text
            result3=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[3]"))).text
            result4=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[4]"))).text
            result5=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[5]"))).text
            result6=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[6]"))).text
            result7=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[7]"))).text
            #result1=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[1]").text
            #result2=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[2]").text
            #result3=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[3]").text
            #result4=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[4]").text
            #result5=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[5]").text
            #result6=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[6]").text
            #result7=driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[7]").text
            WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[8]/a"))).click()#查看详情，打开弹窗
            time.sleep(1)     #加载等待
            #driver.find_element_by_xpath("//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[8]/a").click()#点击列表中的元素
            #time.sleep(0.5)     #加载等待
            result8=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[7]/span[2]"))).text
            result9=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[8]/span[2]"))).text
            #result8=driver.find_element_by_xpath("//form[@class='form-horizontal']/div[7]/span[2]").text
            #result9=driver.find_element_by_xpath("//form[@class='form-horizontal']/div[8]/span[2]").text
            result=[result1,result2,result3,result4,result5,result6,result7,result8,result9]
            R.append(result)
            WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//div[@class='modal-footer ui_modal']/button"))).click()#关闭弹窗
            time.sleep(0.5)     #加载等待
            #driver.find_element_by_xpath("//div[@class='modal-footer ui_modal']/button").click()#点击列表中的元素
            #time.sleep(0.5)     #加载等待

        driver.find_element_by_link_text("下一页").click()#翻页
        time.sleep(0.5)     #加载等待

    if b>0:
        for j in range(1,b+1):
            result1=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[1]"))).text
            result2=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[2]"))).text
            result3=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[3]"))).text
            result4=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[4]"))).text
            result5=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[5]"))).text
            result6=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[6]"))).text
            result7=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[7]"))).text
            WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[8]/a"))).click()#查看详情，打开弹窗
            time.sleep(1)     #加载等待
            result8=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[7]/span[2]"))).text
            result9=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[8]/span[2]"))).text
            result=[result1,result2,result3,result4,result5,result6,result7,result8,result9]
            R.append(result)
            WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//div[@class='modal-footer ui_modal']/button"))).click()#关闭弹窗
            time.sleep(0.5)     #加载等待

    if b==0:
        for j in range(1,11):
            result1=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[1]"))).text
            result2=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[2]"))).text
            result3=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[3]"))).text
            result4=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[4]"))).text
            result5=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[5]"))).text
            result6=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[6]"))).text
            result7=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[7]"))).text
            WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//table[@id='my-msg-list']/tbody/tr["+str(j)+"]/td[8]/a"))).click()#查看详情，打开弹窗
            time.sleep(1)     #加载等待
            result8=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[7]/span[2]"))).text
            result9=WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//form[@class='form-horizontal']/div[8]/span[2]"))).text
            result=[result1,result2,result3,result4,result5,result6,result7,result8,result9]
            R.append(result)
            WebDriverWait(driver,10).until(EC.element_to_be_clickable((By.XPATH,"//div[@class='modal-footer ui_modal']/button"))).click()#关闭弹窗
            time.sleep(0.5)     #加载等待

    time.sleep(0.5)     #加载等待
    with open(wenjian,'w',encoding='utf-8',newline='') as fp:
        writer = csv.writer(fp)
        writer.writerows(R) #写入数据

到此这篇关于Python selenium模拟网页点击爬虫交管12123违章数据的文章就介绍到这了,更多相关Python selenium模拟点击爬虫内容请搜索脚本之家以前的文章或继续浏览下面的相关文章希望大家以后多多支持脚本之家！

您可能感兴趣的文章:
  • python爬虫之利用Selenium+Requests爬取拉勾网
  • python爬虫selenium模块详解
  • python实现selenium网络爬虫的方法小结
  • python爬虫利用selenium实现自动翻页爬取某鱼数据的思路详解
  • Python爬虫之Selenium实现关闭浏览器
  • Python爬虫中Selenium实现文件上传
  • Python爬虫之Selenium下拉框处理的实现
  • 教你如何使用Python selenium

标签：江苏 六盘水 成都 山东 兰州 宿迁 常州 驻马店

巨人网络通讯声明：本文标题《Python selenium模拟网页点击爬虫交管12123违章数据》，本文关键词  Python,selenium,模拟,网页,；如发现本文内容存在版权问题，烦请提供相关信息告之我们，我们将及时沟通与处理。本站内容系统采集于网络，涉及言论、版权与本站无关。
  • 相关文章
  • 下面列出与本文章《Python selenium模拟网页点击爬虫交管12123违章数据》相关的同类信息！
  • 本页收集关于Python selenium模拟网页点击爬虫交管12123违章数据的相关信息资讯供网民参考！
    • 推荐文章

    上一篇：python scipy 稀疏矩阵的使用说明

    下一篇：Python 如何解决稀疏矩阵运算

    Copyright © 1999-2012 诚信 合法 规范的巨人网络通讯始建于2005年

    苏ICP备15040257号-8

    产品关键词： Python selenium模拟网页点击爬虫交管12123违章数据 Python,selenium,模拟,网页,
