PyTorch 迁移学习实践(几分钟即可训练好自己的模型)

前言

如果你认为深度学习非常的吃GPU，或者说非常的耗时间，训练一个模型要非常久，但是你如果了解了迁移学习那你的模型可能只需要几分钟，而且准确率不比你自己训练的模型准确率低，本节我们将会介绍两种方法来实现迁移学习

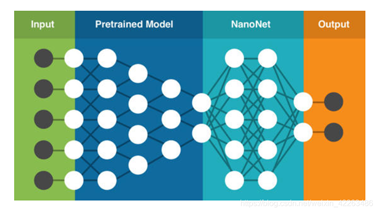

迁移学习方法介绍

微调网络的方法实现迁移学习，更改最后一层全连接，并且微调训练网络
将模型看成特征提取器，如果一个模型的预训练模型非常的好，那完全就把前面的层看成特征提取器，冻结所有层并且更改最后一层，只训练最后一层，这样我们只训练了最后一层，训练会非常的快速

迁移基本步骤

数据的准备
选择数据增广的方式
选择合适的模型
更换最后一层全连接
冻结层，开始训练
选择预测结果最好的模型保存

需要导入的包

import zipfile # 解压文件
import torchvision
from torchvision import datasets, transforms, models
import torch
from torch.utils.data import DataLoader, Dataset
import os
import cv2
import numpy as np
import matplotlib.pyplot as plt
from PIL import Image
import copy

数据准备

本次实验的数据到这里下载
首先按照上一章节讲的数据读取方法来准备数据

# 解压数据到指定文件
def unzip(filename, dst_dir):
  z = zipfile.ZipFile(filename)
  z.extractall(dst_dir)
unzip('./data/hymenoptera_data.zip', './data/')
# 实现自己的Dataset方法，主要实现两个方法__len__和__getitem__
class MyDataset(Dataset):
  def __init__(self, dirname, transform=None):
    super(MyDataset, self).__init__()
    self.classes = os.listdir(dirname)
    self.images = []
    self.transform = transform
    for i, classes in enumerate(self.classes):
      classes_path = os.path.join(dirname, classes)
      for image_name in os.listdir(classes_path):
        self.images.append((os.path.join(classes_path, image_name), i))
  def __len__(self):
    return len(self.images)
  def __getitem__(self, idx):
    image_name, classes = self.images[idx]
    image = Image.open(image_name)
    if self.transform:
      image = self.transform(image)
    return image, classes
  def get_claesses(self):
    return self.classes
# 分布实现训练和预测的transform
train_transform = transforms.Compose([
  transforms.Grayscale(3),
  transforms.RandomResizedCrop(224), #随机裁剪一个area然后再resize
  transforms.RandomHorizontalFlip(), #随机水平翻转
  transforms.Resize(size=(256, 256)),
  transforms.ToTensor(),
  transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
])
val_transform = transforms.Compose([
  transforms.Grayscale(3),
  transforms.Resize(size=(256, 256)),
  transforms.CenterCrop(224),
  transforms.ToTensor(),
  transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
])
# 分别实现loader
train_dataset = MyDataset('./data/hymenoptera_data/train/', train_transform)
train_loader = DataLoader(train_dataset, shuffle=True, batch_size=32)
val_dataset = MyDataset('./data/hymenoptera_data/val/', val_transform)
val_loader = DataLoader(val_dataset, shuffle=True, batch_size=32)

选择预训练的模型

这里我们选择了resnet18在ImageNet 1000类上进行了预训练的

model = models.resnet18(pretrained=True) # 使用预训练

使用model.buffers查看网络基本结构

bound method Module.buffers of ResNet(
 (conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
 (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
 (relu): ReLU(inplace=True)
 (maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
 (layer1): Sequential(
  (0): BasicBlock(
   (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
  )
  (1): BasicBlock(
   (conv1): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
  )
 )
 (layer2): Sequential(
  (0): BasicBlock(
   (conv1): Conv2d(64, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (downsample): Sequential(
    (0): Conv2d(64, 128, kernel_size=(1, 1), stride=(2, 2), bias=False)
    (1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   )
  )
  (1): BasicBlock(
   (conv1): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
  )
 )
 (layer3): Sequential(
  (0): BasicBlock(
   (conv1): Conv2d(128, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (downsample): Sequential(
    (0): Conv2d(128, 256, kernel_size=(1, 1), stride=(2, 2), bias=False)
    (1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   )
  )
  (1): BasicBlock(
   (conv1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
  )
 )
 (layer4): Sequential(
  (0): BasicBlock(
   (conv1): Conv2d(256, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (downsample): Sequential(
    (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
    (1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   )
  )
  (1): BasicBlock(
   (conv1): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn1): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
   (relu): ReLU(inplace=True)
   (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
   (bn2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
  )
 )
 (avgpool): AdaptiveAvgPool2d(output_size=(1, 1))
 (fc): Linear(in_features=512, out_features=1000, bias=True)
)>

我们现在需要做的就是将最后一层进行替换

only_train_fc = True
if only_train_fc:
  for param in model.parameters():
    param.requires_grad_(False)
fc_in_features = model.fc.in_features
model.fc = torch.nn.Linear(fc_in_features, 2, bias=True)

注释:only_train_fc如果我们设置为True那么就只训练最后的fc层
现在观察一下可导的参数有那些（在只训练最后一层的情况下）

for i in model.parameters():
  if i.requires_grad:
    print(i)

Parameter containing:
tensor([[ 0.0342, -0.0336, 0.0279, ..., -0.0428, 0.0421, 0.0366],
    [-0.0162, 0.0286, -0.0379, ..., -0.0203, -0.0016, -0.0440]],
    requires_grad=True)
Parameter containing:
tensor([-0.0120, -0.0086], requires_grad=True)

注释:由于最后一层使用了bias因此我们会多加两个参数

训练主体的实现

epochs = 50
loss_fn = torch.nn.CrossEntropyLoss()
opt = torch.optim.SGD(lr=0.01, params=model.parameters())
device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
# device = torch.device('cpu')
model.to(device)
opt_step = torch.optim.lr_scheduler.StepLR(opt, step_size=20, gamma=0.1)
max_acc = 0
epoch_acc = []
epoch_loss = []
for epoch in range(epochs):
  for type_id, loader in enumerate([train_loader, val_loader]):
    mean_loss = []
    mean_acc = []
    for images, labels in loader:
      if type_id == 0:
        # opt_step.step()
        model.train()
      else:
        model.eval()
      images = images.to(device)
      labels = labels.to(device).long()
      opt.zero_grad()
      with torch.set_grad_enabled(type_id==0):
        outputs = model(images)
        _, pre_labels = torch.max(outputs, 1)
        loss = loss_fn(outputs, labels)
      if type_id == 0:
        loss.backward()
        opt.step()
      acc = torch.sum(pre_labels==labels) / torch.tensor(labels.shape[0], dtype=torch.float32)
      mean_loss.append(loss.cpu().detach().numpy())
      mean_acc.append(acc.cpu().detach().numpy())
    if type_id == 1:
      epoch_acc.append(np.mean(mean_acc))
      epoch_loss.append(np.mean(mean_loss))
      if max_acc  np.mean(mean_acc):
        max_acc = np.mean(mean_acc)
    print(type_id, np.mean(mean_loss),np.mean(mean_acc))
print(max_acc)

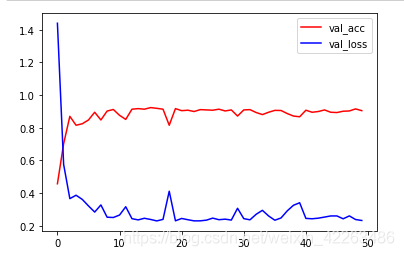

在使用cpu训练的情况，也能快速得到较好的结果，这里训练了50次，其实很快的就已经得到了很好的结果了
